The Pioneer XY-2 is an 8” Two-Way Passive Mid-High Loudspeaker. The XY-2 speaker is the mid-high section of the XY-3B. Designed specifically for large-scale venues and Stadiums, the XY-2 can be used for PA applications, as a DJ booth monitor or as a down fill in an XY-3B cluster setting.
Moulded Bi-Horn
The 8-inch mid-range driver and the 1-inch compression driver are attached to the integrated waveguide with their depths perfectly aligned to minimize the difference of physical distance and reduce cancellation around the crossover frequency. This unique Bi-horn combines mid and high frequencies in a deep position inside the waveguide, improving the blend of the sounds compared to the performance of a conventional separated horn structure. The waveguide’s curved shape perfectly controls dispersion at 50 degrees horizontal and 35 degrees vertical, providing natural sound with high SPL in the targeted area while reducing the sound pressure outside that area.

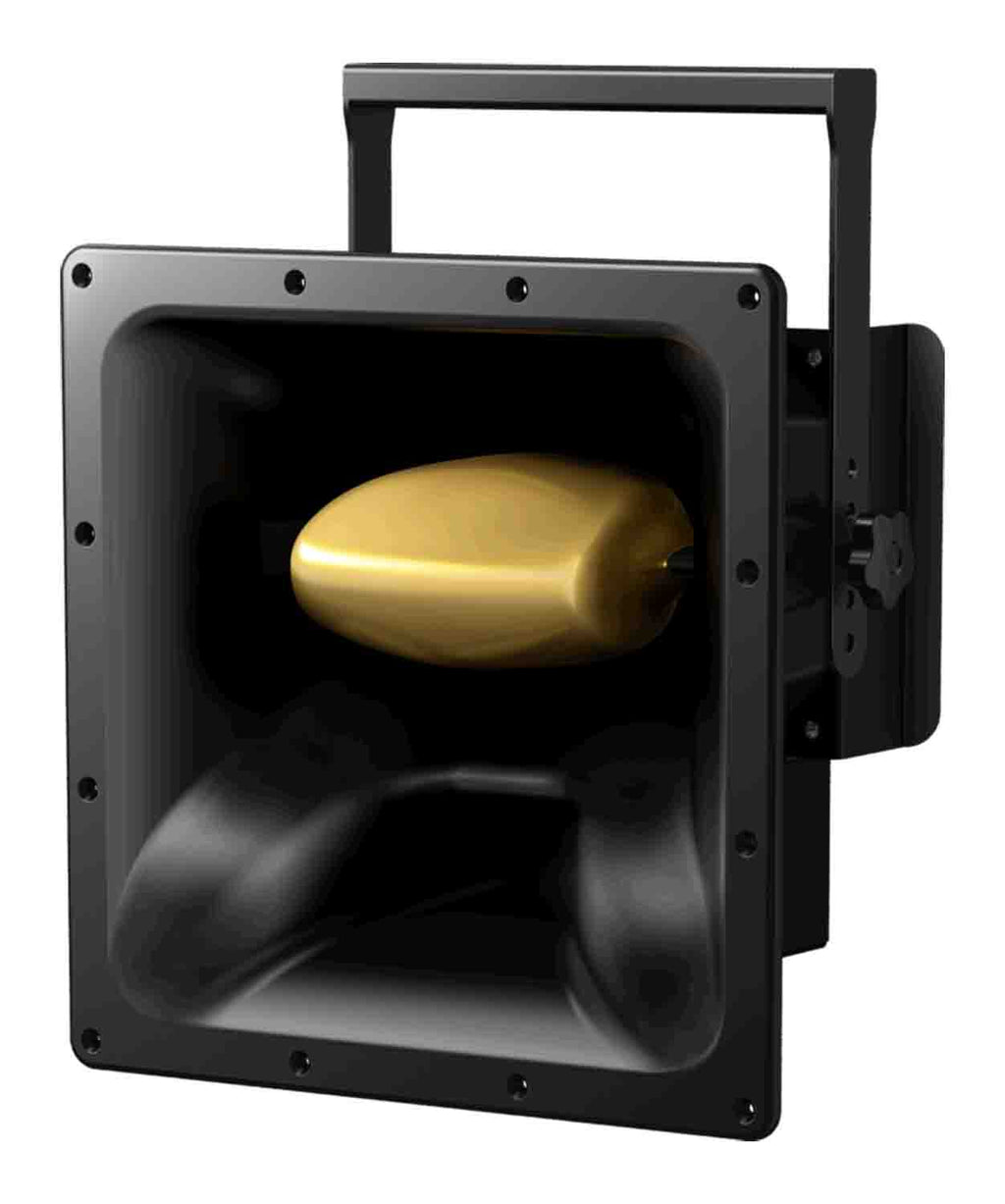

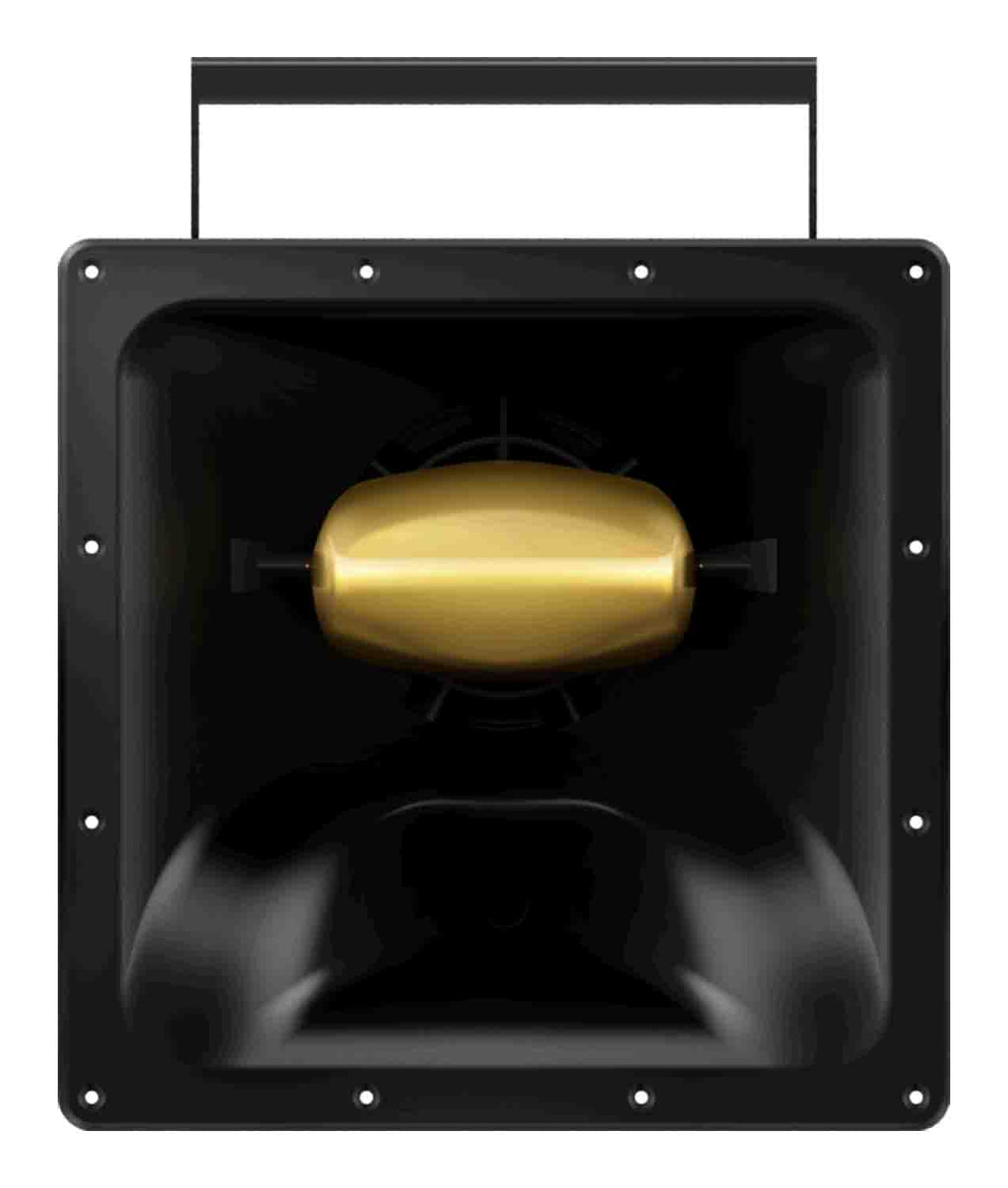

X-Phase System with Gold X-Phase Plug
Driver cone cancellation is minimized thanks to Pioneer Pro Audio’s X-Phase system. The convex shape forces sound waves into small slits which are arranged in a fan shape, allowing all sound waves to exit in perfect phase aliment. The sound waves are forced over the top and bottom of the X-phase plug, producing higher SPL and greater sound projection over long distances.
Product Specifications
Category
Specification
Value
Hardware
Enclosure Type
2WAY mid-high loudspeaker
Enclosure
Polyurethane
Loudspeaker Data
Transformer Taps
MF (Mid-Frequency) Loudspeaker
8-inch neodymium cone driver
HF (High-Frequency) Loudspeaker
1-inch exit neodymium compression driver
Power Handling
200 W (RMS), 400 W (Program)
Power Handling AES
130 dB (cont.), 136 dB (peak)
Dispersion
speakON® NL4 x 2
System Data
Frequency Response
170 Hz to 17 kHz
Sensitivity (1W/1m)
107 dB
Nominal Impedance
8 Ω
Dimensions (W x H x D)
480 mm x 480 mm x 376 mm
Weight
13.5 kg
Category
Specification
Value
Hardware
Enclosure Type
2WAY mid-high loudspeaker
Enclosure
Polyurethane
Loudspe
Transformer Taps
MF (Mid-Frequency) Loudspeaker
8-inch neodymium cone driver
HF (High-Frequency) Loudspeaker
1-inch exit neodymium compression driver
Power Handling
200 W (RMS), 400 W (Program)
Power Handling AES
130 dB (cont.), 136 dB (peak)
Dispersion
speakON® NL4 x 2
System Data
Frequency Response
170 Hz to 17 kHz
Sensitivity (1W/1m)
107 dB
Nominal Impedance
8 Ω
Dimensions (W x H x D)
480 mm x 480 mm x 376 mm
Weight
13.5 kg
Category
Specification
Value
Hardware
Enclosure Type
2WAY mid-high loudspeaker
Enclosure
Polyurethane
Loudsaker Datape
Transformer Taps
MF (Mid-Frequency) Loudspeaker
8-inch neodymium cone driver
HF (High-Frequency) Loudspeaker
1-inch exit neodymium compression driver
Power Handling
200 W (RMS), 400 W (Program)
Power Handling AES
130 dB (cont.), 136 dB (peak)
Dispersion
speakON® NL4 x 2
System Data
Frequency Response
170 Hz to 17 kHz
Sensitivity (1W/1m)
107 dB
Nominal Impedance
8 Ω
Dimensions (W x H x D)
480 mm x 480 mm x 376 mm
Weight
13.5 kg
