The Pioneer DJ XPRS10 is sold as a single speaker. The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensures these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.
The XPRS10 single PA speaker combines a 10-inch ferrite LF driver, a 1.75-inch titanium diaphragm compression driver and Pioneer Pro Audio’s AFAST technology to deliver crystal clear audio with a deep bass range. Being compact, plug-and-play and easy to transport, this speaker is a reliable partner on the road, for any venue.
Natural, Full-Range Sound
The 15-mm birch plywood cabinet, 10-inch ferrite LF driver and 1.75-inch titanium diaphragm compression driver reproduce a clean, full-range sound with low distortion, even at high outputs. Plus, the XPRS10’s compact horn sounds bright and clear.
Powersoft Class D Amps
Powersoft’s Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments.
AFAST Acoustic Tube
Pioneer Pro Audio’s AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs only the standing waves, increasing the low-to-mid frequency response.
4 EQ Modes

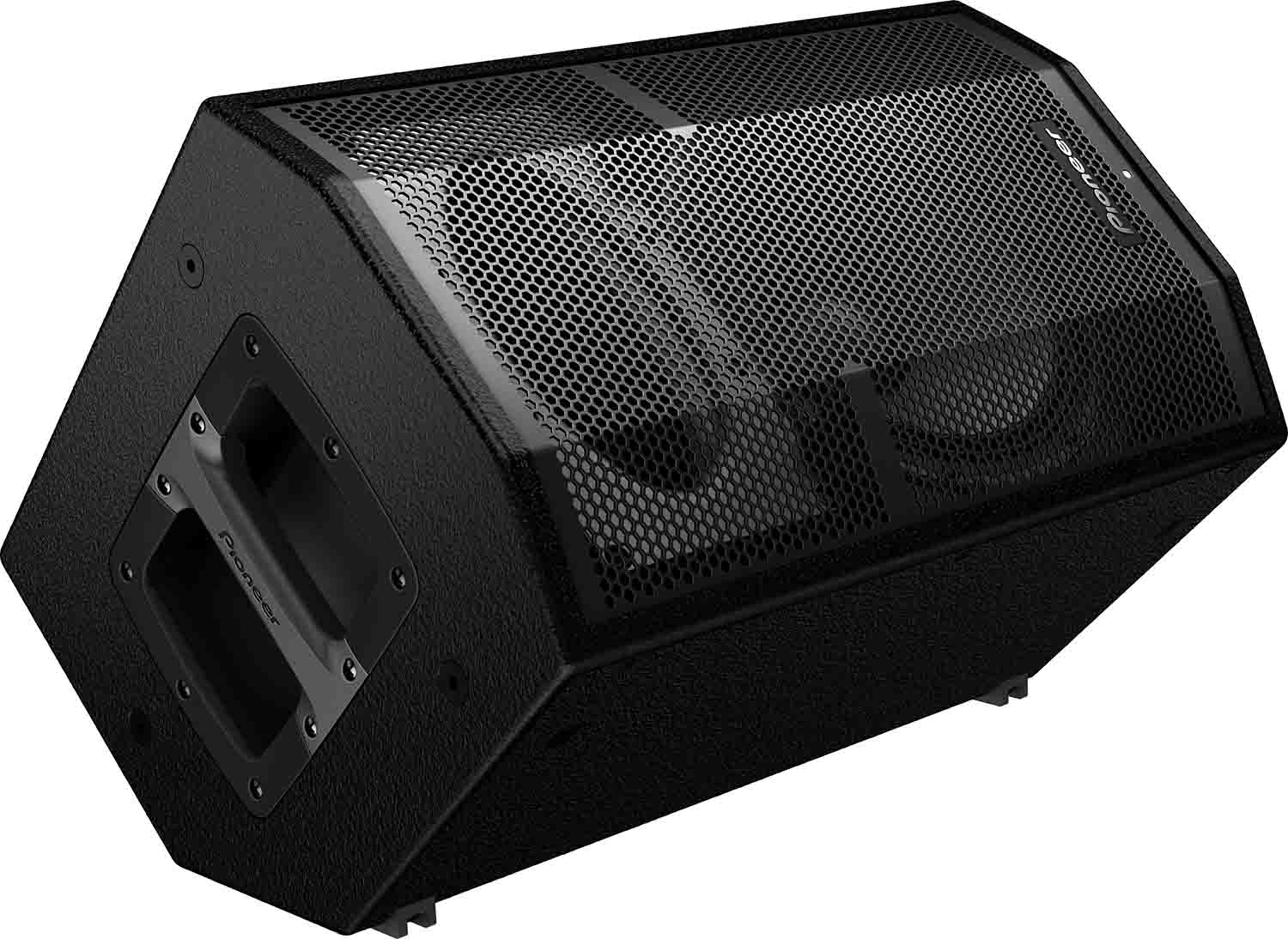

Adapt to a variety of genres and environments using the rotary selector switch on the back of the speaker to give you instant access to 4 EQ modes: Flat, Bass +, Speech and Wedge.
Advanced Protection
The XPRS speaker is packed with features to protect the drivers, amp and power supply in to Amplifier module – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system.
Flexible Connectivity

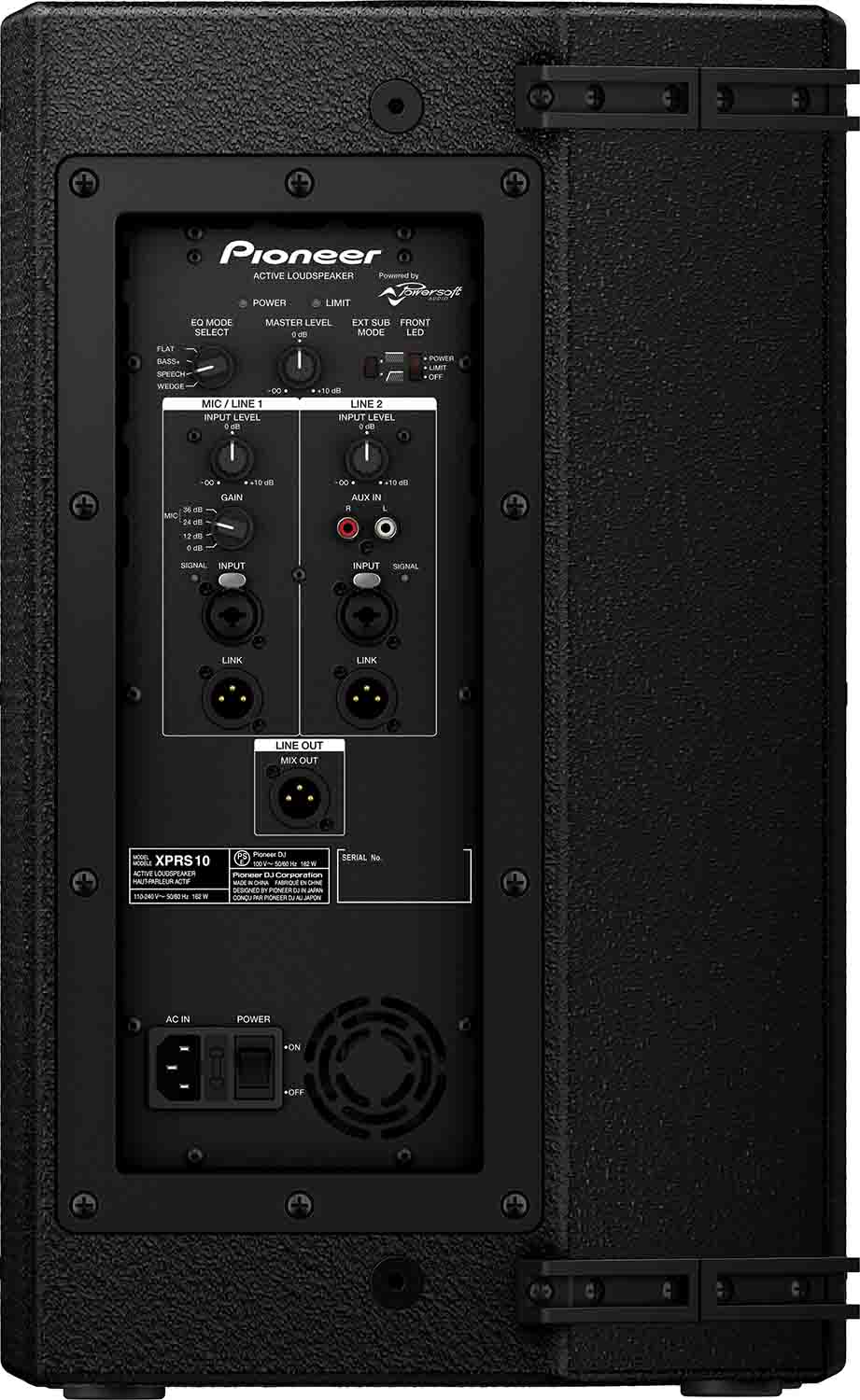

2 balanced XLR/TRS combo sockets and an unbalanced RCA connection mean you can connect at the same time a Mic and other devices, such as line-level mixers or portable audio players.
Product Specification:
Frequency Range: 55 - 20000 Hz
System characteristic:
Maximum Sound Pressure: 134 dB
Cross Over Frequency: 2 kHz
Terminals:
Inputs: 2 XLR/TRS Combo (balanced), 2 RCA (unbalanced)
Outputs: 2 Through output XLR (balanced), 1x Mixed output XLR (balanced)
Amplifier:
Amplifier Output:Class D, 2400W peak / 1200W cont. (LF800W / HF400W)
Impedance: 10 kΩ
Speaker:
Driver: 10 inch ferrite LF cone driver, 1.75 inch titanium diaphragm neodymium compression driver
Enclosure: 15 mm birch plywood
Width: 320 mm
Height: 520 mm
Depth: 374 mm
Weight: 18.9 kg
